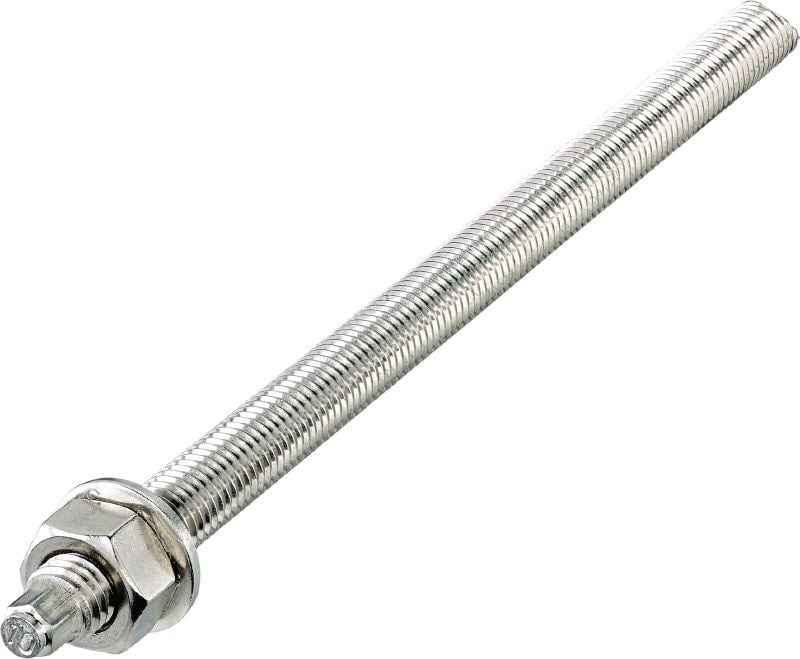

HAS-U A4 anchor rod
New productItem #r9864253
High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (A4 stainless steel)
- Material, corrosion: Stainless steel, A4
- Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
- Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
Features & Applications
Features & Applications
Features
- Head marking for easy verification of steel grade and rod length, even after installation
- Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
- Custom lengths and additional diameters up to M39 available upon request
- Large range of anchor rod diameters (M6-M39)
- Free of oil and other contaminants – engineered for full compatibility with Hilti HIT adhesive anchors
Applications
- Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems
- For fastenings under fatigue loading designed through Profis Engineering suite
- For applications under fatigue loading in combination with HIT-HY 200-A/-R V3 adhesive, HIT-RE 500 V4 mortar or HVU2 anchor capsule (sizes M8-M24)
For approval or certificate information, please see individual items.
