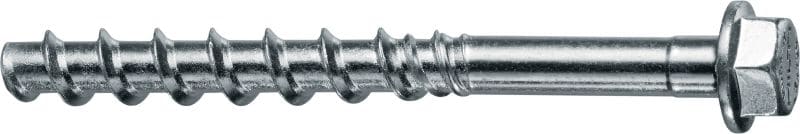

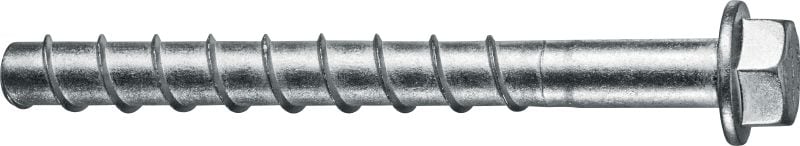

HUS4-H screw anchor
New productItem #r12910874
High performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / test reports: ETA, Fire, Seismic
Features & Applications
Features & Applications
Features
- Up to 2x faster than wedge anchors – fewer work steps help you save time on every single fastening
- Simpler to instal – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking in the toughest concrete – thanks to smaller core diameter and new thread design
- Broad range of approvals – ETA (EAD 330232) with cracked and uncracked concrete, seismic C1 and C2, fire resistance and new materials such as steel fibre reinforced concrete (SFRC) and masonry, (solid clay brick, solid sand-limestone brick, aerated concrete and lightweight concrete)
- Reusable and adjustable – the ideal screw anchor for temporary fastenings, HUS4 can be reused multiple times
Applications

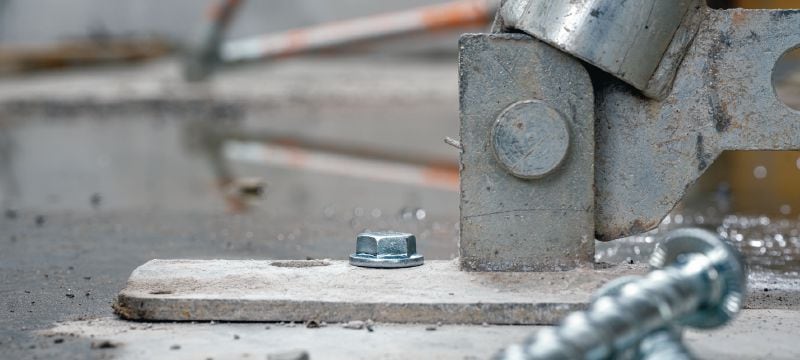

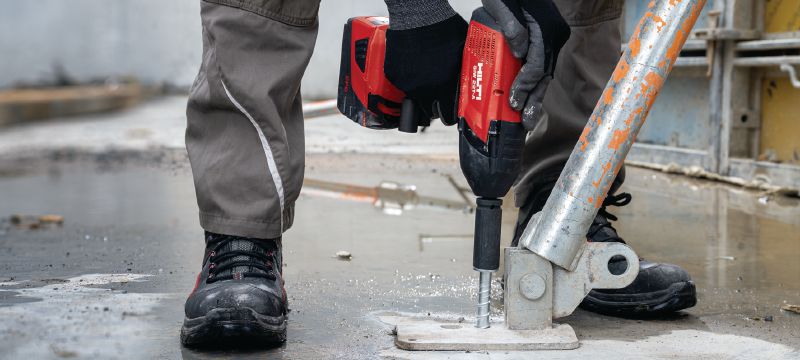

- Temporary fastening to concrete – such as formwork props, tilt ups and prefab connectors

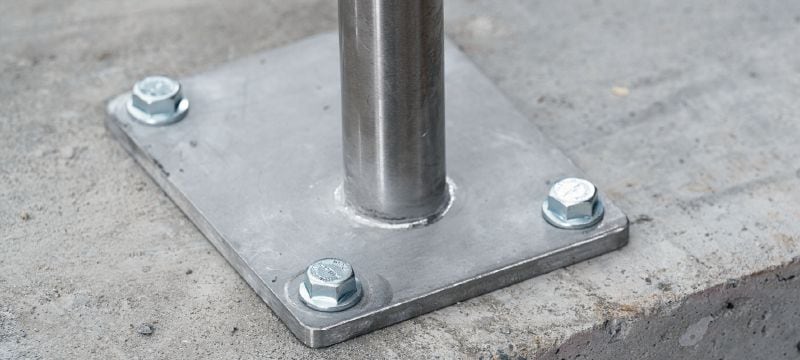

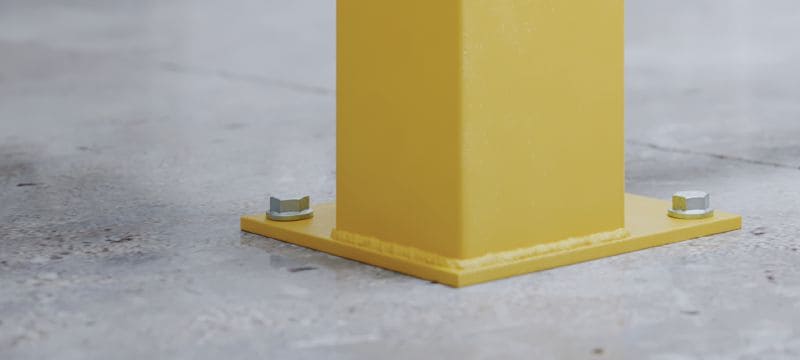

- Fastening non-structural baseplates, platforms, staircases, balconies and industrial equipment to concrete
- Technical data available for fastening to hollow core slabs, masonry blocks (lightweight concrete, aerated concrete, etc.), as well as fire resistance and stand-off installation with grout
- Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
For approval or certificate information, please see individual items.
