HRD-C Plastic frame anchor
New productItem #r4674
High-performance plastic frame anchor (carbon steel, countersunk head)
- Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
- Head configuration: Countersunk
- Approvals / test reports: ETA, Fire, Fire (For more details please check the fire approval)
Features & Applications
Features & Applications
Features
- Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
- Suitable for fastening items with a thickness of up to 260 mm (anchor lengths from 60 mm to 310 mm)
- Available in 3 different materials for optimum suitability in all corrosive environments
- Pre-assembled for optimum handling and fastening quality
Applications

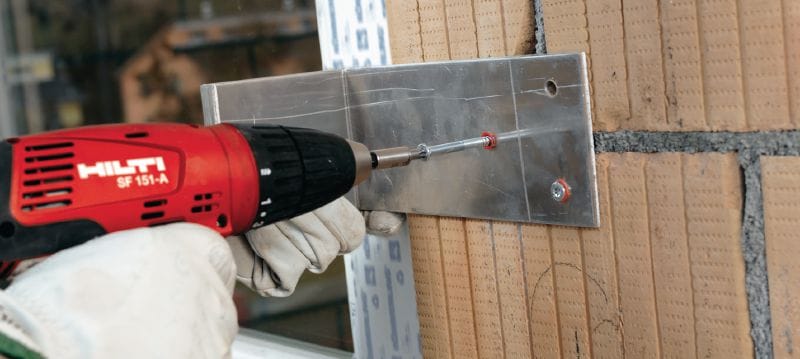

- Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.

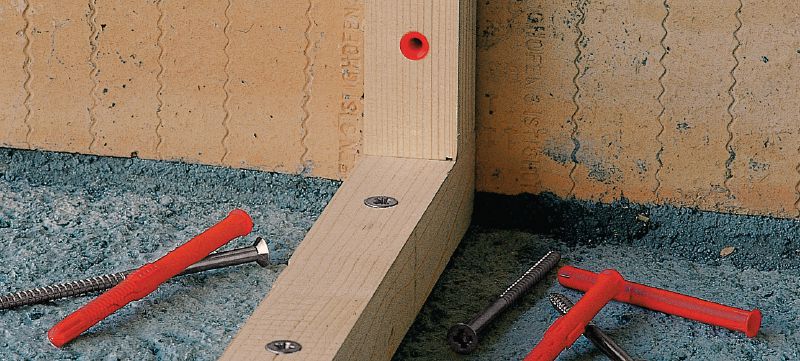

- Fastening wooden substructures for ventilated facades
- Fastening door and window frames
For approval or certificate information, please see individual items.
