S-BT-EF HC Screw-in stud
New product
Ultimate
Item #r8993958
Threaded screw-in stud (carbon steel, whitworth thread) for electrical connections on steel in highly corrosive environments, recommended maximal cross section of connected cable 4/0 AWG
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
Features & Applications
Features & Applications
Features

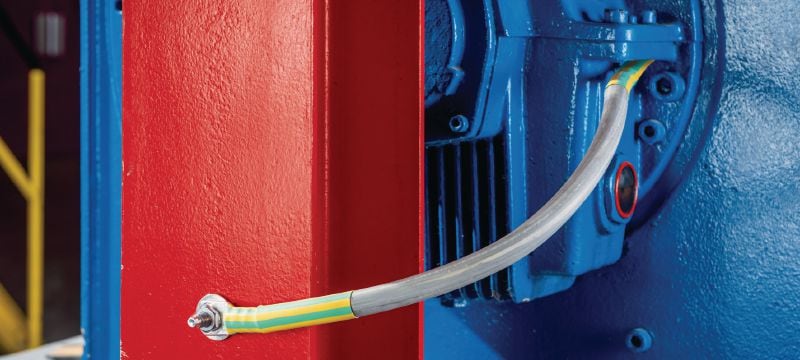

- Ideal for equipotential bonding
- Enhanced protection against static electricity
- Enhanced safety – allows electrical current to flow through the conductivity disc and then discharges it properly into the base material
- Suitable for use on most standard steel structures
- Suitable for use in mildly corrosive environments (C3)
Applications
- Functional bonding
- Protective bonding
- Terminal connection
- Lightning protection
- Bonding and earthing/grounding
For approval or certificate information, please see individual items.
