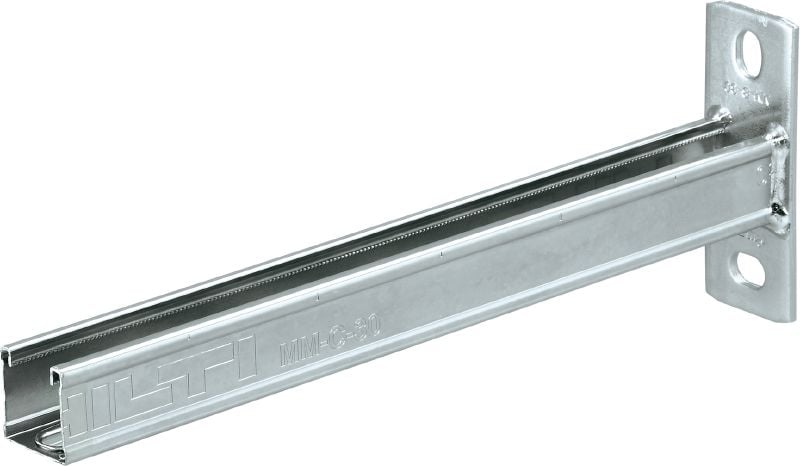

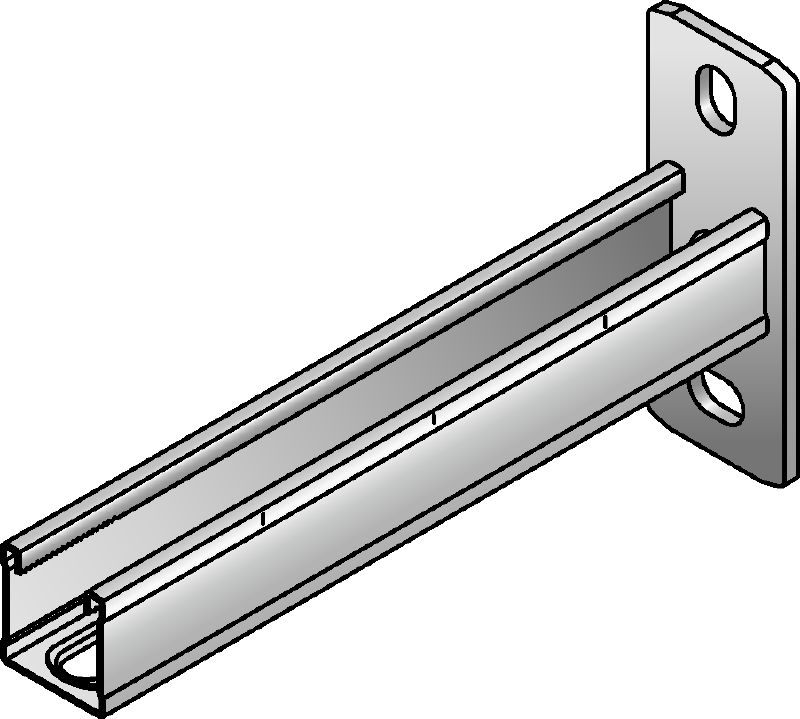

MM-B-30
New productItem #r4602
Bracket
- Material thickness: Channel: 1 mm, Baseplate: 4 mm
- Material composition: Material channel: S235 JR - DIN EN 10025-2, Material plate: S355 MC - DIN EN 10149-2
- Surface finish: Galvanized
Features & Applications
Features & Applications
Features
- Serrated C-profile
- Reinforced slots for greater versatility and rigidity
- Matched to anchor loading capacity
- Grid dimensions serve as an installation aid
- Serrated C-section edge
Applications
- Installation of pipe supports, air ducts and cable trays
- For fastening light to medium-duty pipe runs
- For fastening ventilation ducts and cable trays
- Recommended for use in dry interiors
