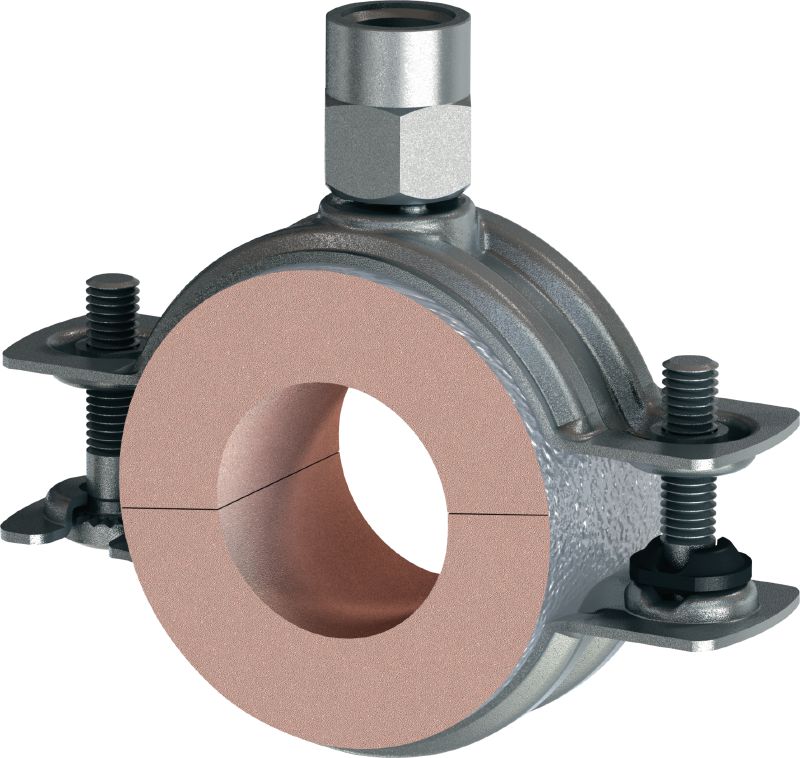

MI-CF LS Refrigeration pipe clamps
New productItem #r2643
Standard galvanized pipe clamp without load sharing for refrigeration applications with a variety of insulation thicknesses
- Approvals: Fire class B2
- Temperature resistance: -70 - 120 °C
- Material composition: Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil
Features & Applications
Features & Applications
Features
- Simpler and faster pre-fitting of most common pipe sizes due to the two-screw pipe clamp with swivel mechanism
- Large pipe diameters with higher loads can be installed with two-screw heavy-duty pipe clamps

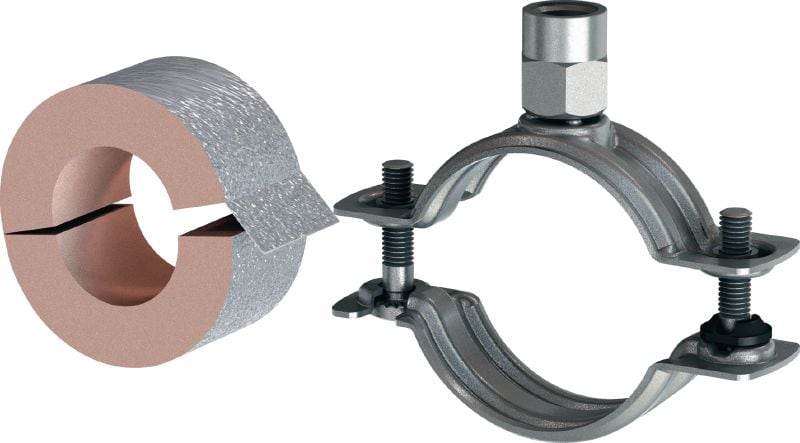

- All-in-one package – pipe clamp and insulation core – simplifies handling on the jobsite and in the warehouse
- Free of H-CFCs or CFCs
- Easy initial installation of the pipe thanks to the two-screw pipe ring with pivot mechanism
Applications

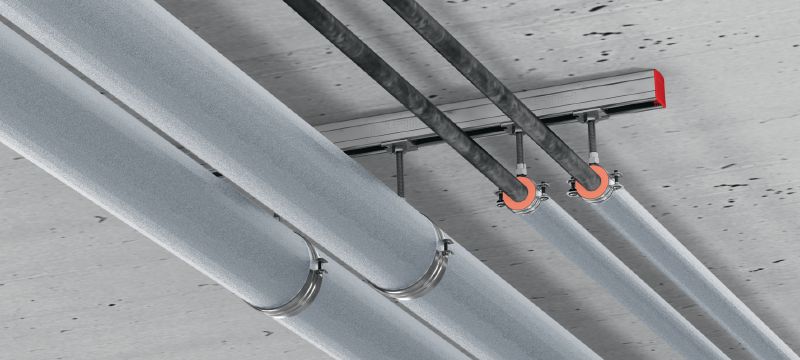

- Fastening pipes for refrigeration and air conditioning systems
- Mounting refrigeration pipes in industrial and air conditioning applications
For approval or certificate information, please see individual items.
