Flat washer DIN 125 M12 HDG
New productItem #r3137

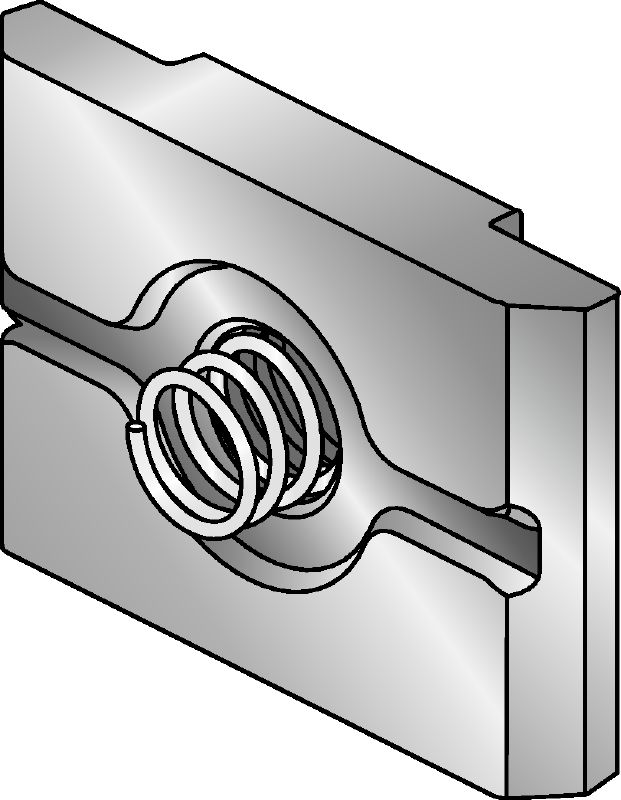

Hot-dip galvanised (HDG) plate for easier fastening and one-handed adjustment of MI and MIQ connectors
- Weight: 0.29 kg
- Material composition: Plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Spring: EN 10270-3
- Surface finish: HDG: 45 µm - DIN EN ISO 1461
Features & Applications
Features & Applications
Features
- Single-handed installation thanks to integrated anti-rotation device
- Hand plate for single-handed adjustment of the connection
- Hand plate for single-handed adjustment of the connection
Applications
- Fastening connectors that are part of the MI and MIQ modular support systems
- Provides an easy-to-install, reliable solution for the chemical, pharmaceutical and petrochemical industries or in incineration plants and power stations
- Single-handed installation thanks to integrated anti-rotation device
- Hand plate for single-handed adjustment of the connection
