MC-CU OC-A
New productItem #r1229251

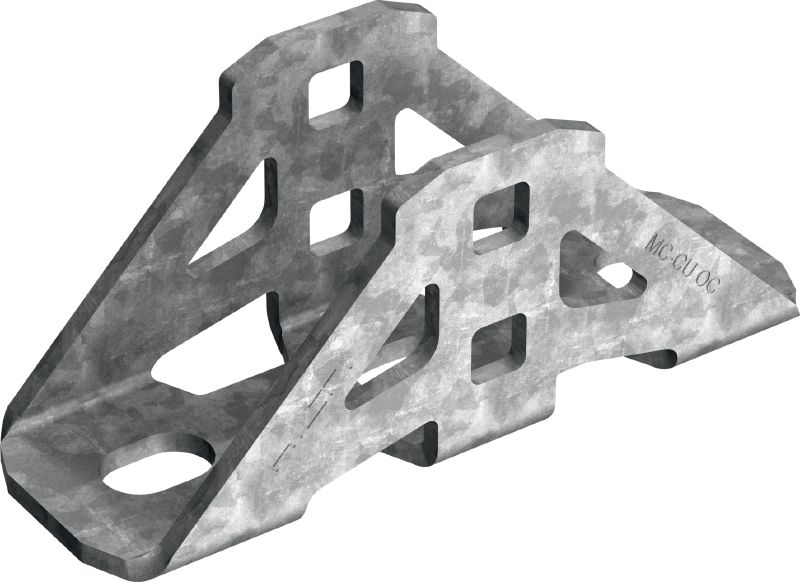

Hot-dip galvanised (HDG) connector for fastening MC-3D installation channels to a concrete substructure or another channel outdoors – either perpendicularly or at an angle
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
- Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
- Material thickness: 4 mm
Features & Applications
Features & Applications
Features
- Various, easy installation options
- High flexibility – supports multiple fastening types and directions
- Multifunctional – can be used as a channel or base connector

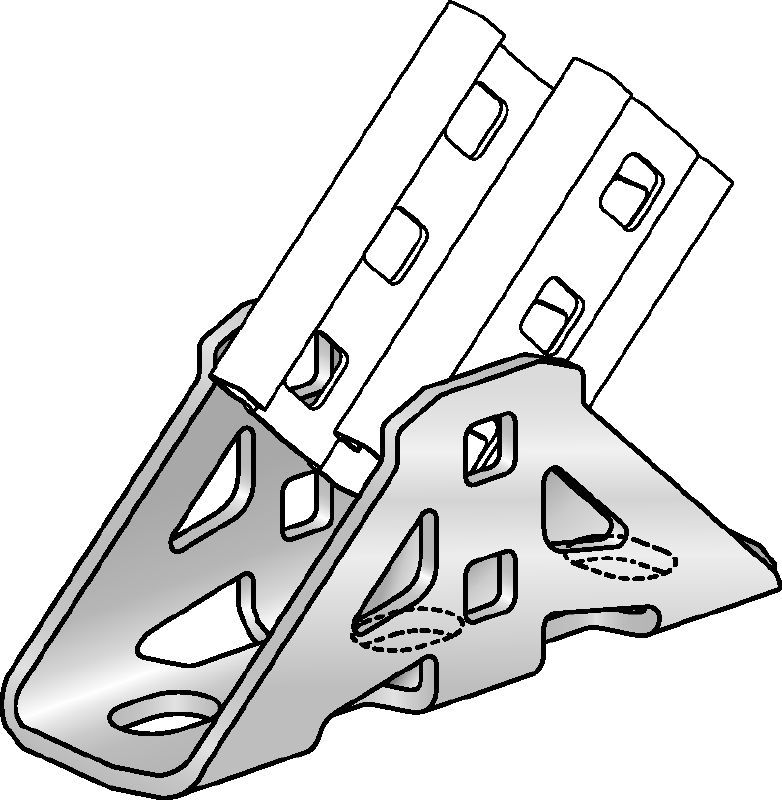

- Pivoting connection possible from 0 to 180 degrees
Applications
- Connecting MC-3D channels to MC and MI installation channels
- Connecting MC-3D channels to concrete
- Cross bracing
- Fastening to floors, ceilings or walls
