MC-A-90 OC-A
New productItem #r1233537

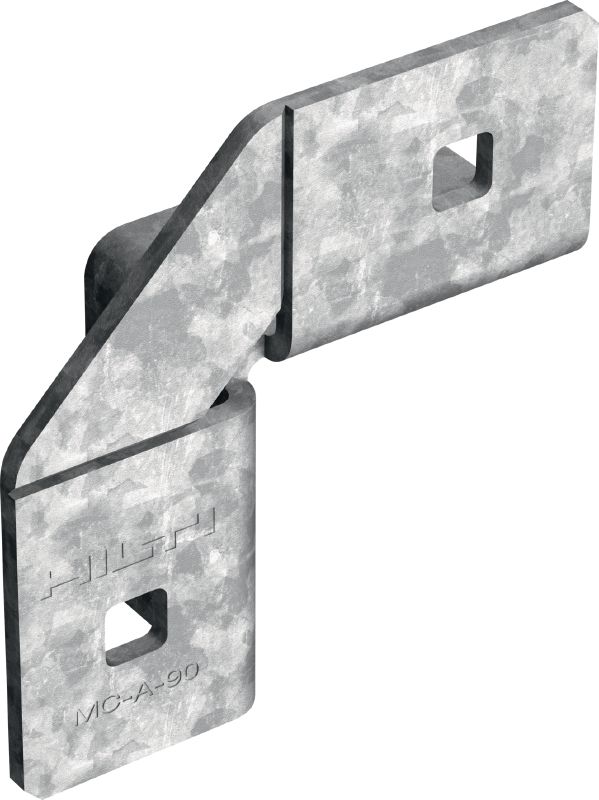

Hot-dip galvanised (HDG) angle connector for 90-degree attachment of MC-3D channels to one another with higher load requirements outdoors
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
- Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
- Material thickness: 4 mm
Features & Applications
Features & Applications
Features
- Various, easy installation options
- Can be fitted regardless of the direction in which the open side of the channel is facing
- High load capacity
Applications

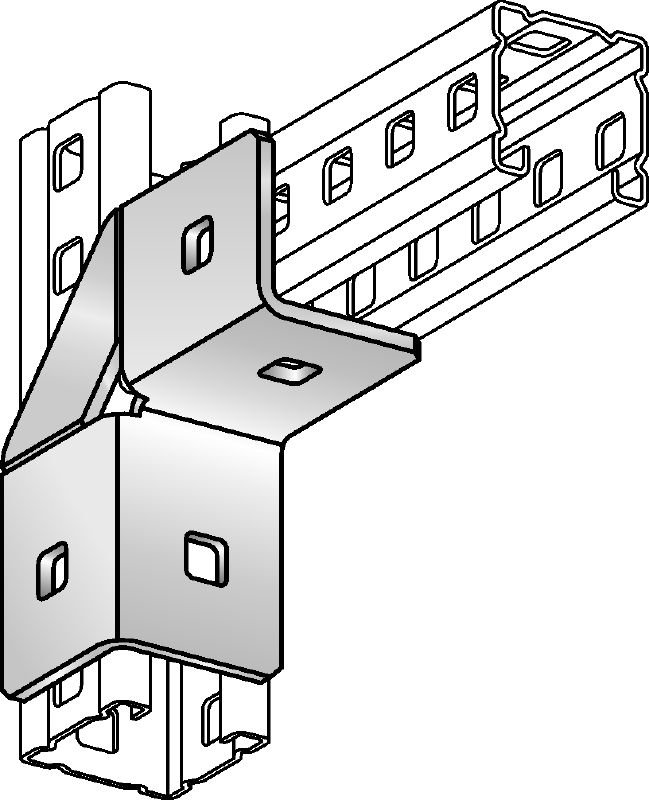

- Connecting any two MC channels at 90 degrees
- Assembly of two and three-dimensional modular system structures
