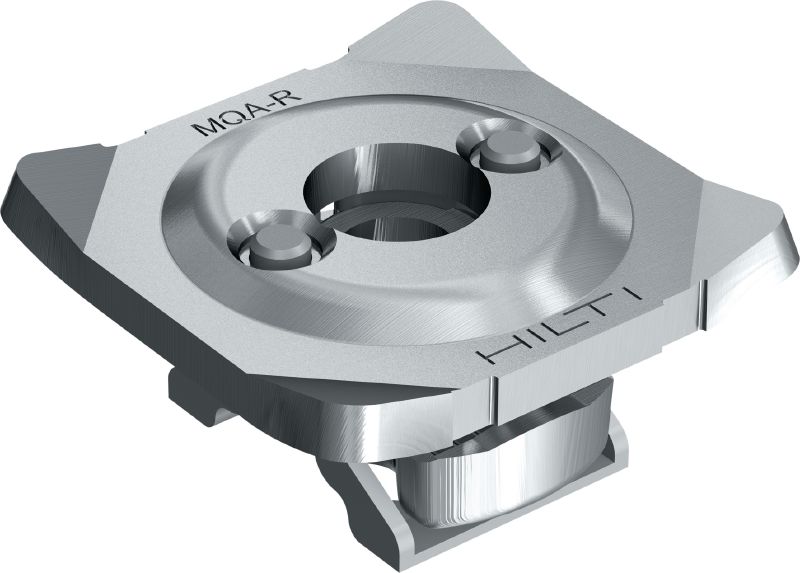

MQA-R Pipe clamp saddle
New productItem #r2917

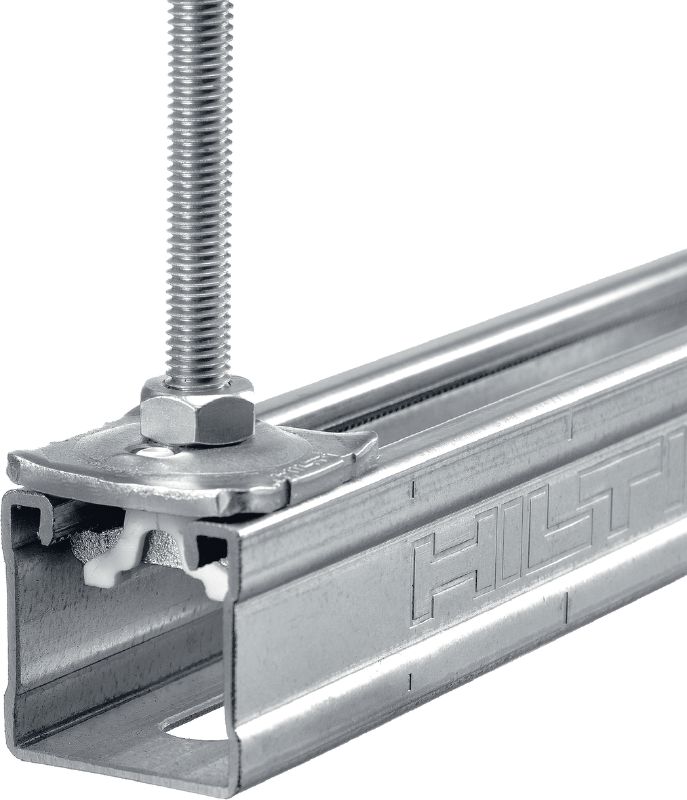

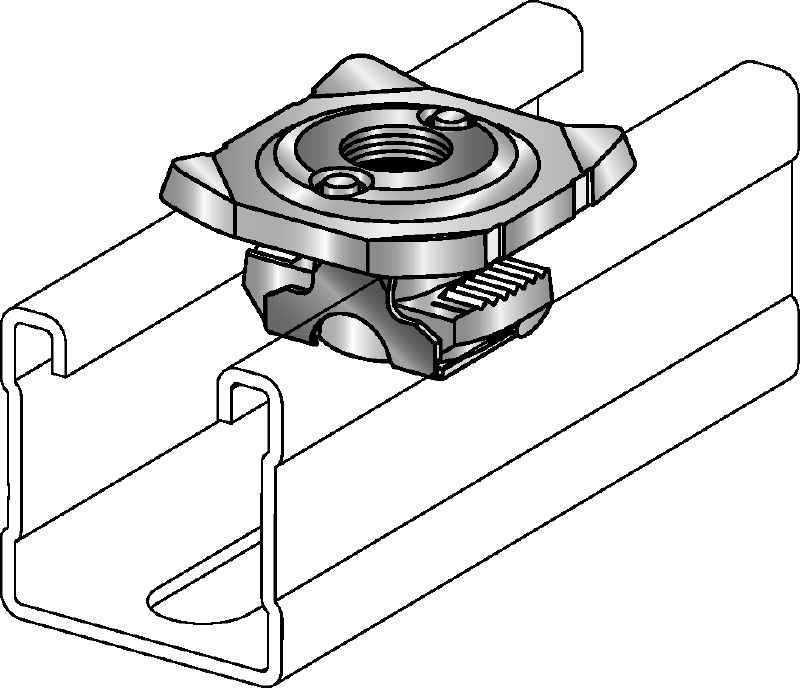

Stainless steel pipe clamp saddle for connecting threaded components to MQ strut channels
- Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
- Surface finish: Outdoor Plus - Stainless Steel
- Environmental conditions: Outdoor high pollution (C4 – high / C5)
Features & Applications
Features & Applications
Features
- Quick connection of threaded components to the open side of MQ strut channels
- Easy installation and positioning within MQ strut channel openings
- Single, compact part – for higher productivity and flexibility
- Various thread sizes available
- Moveable
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
- Recommended for use in corrosive environments
- For metric threads
