MIC-MI/MQ M8
New productItem #r6188

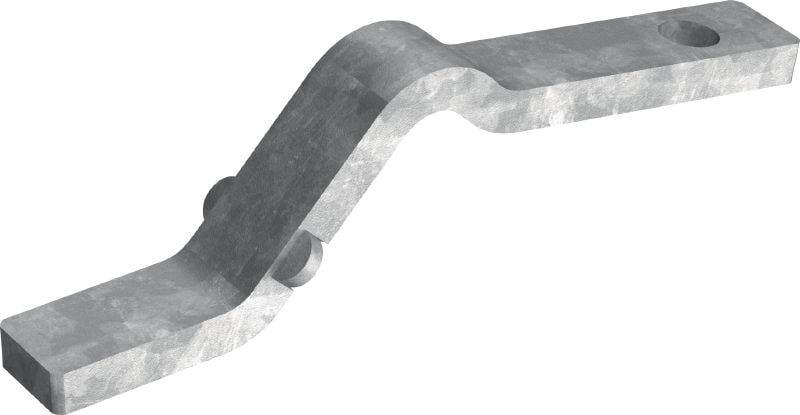

Hot-dip galvanised (HDG) connector for fastening MQ strut channels parallel to MI girders
- Weight: 0.06 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt 45 µm - DIN EN ISO 1461
Features & Applications
Features & Applications
Features
- Allows direct connection to MQ strut channels
- Keyed hold for optimum transmission of forces and moments
Applications

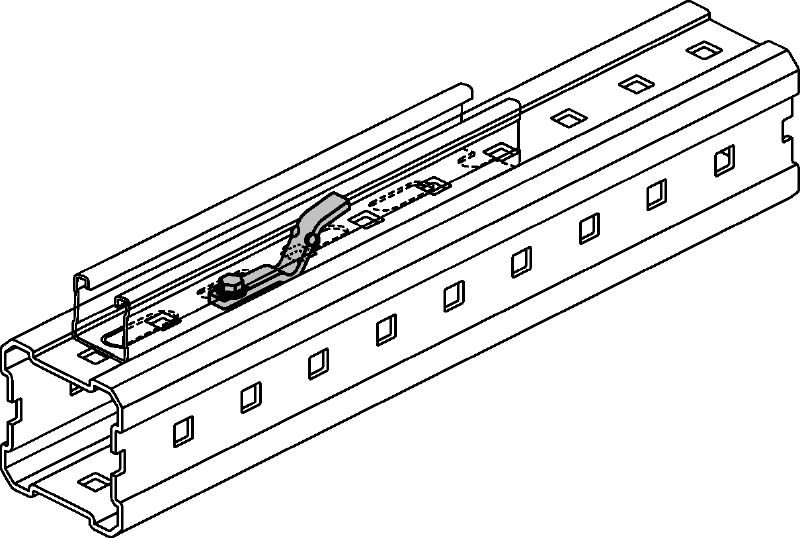

- Direct connection of MQ installation channels to the MI system

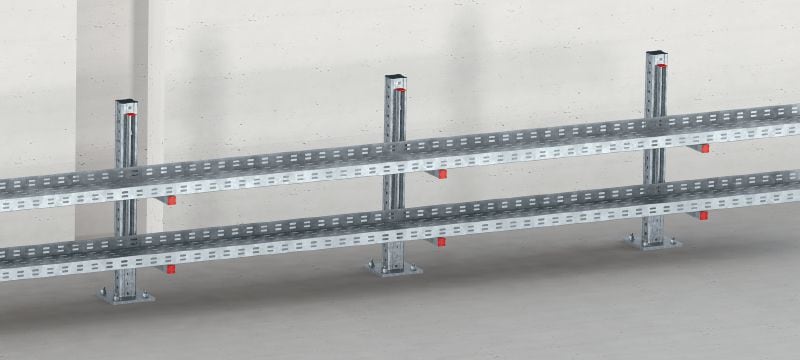

- Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations
