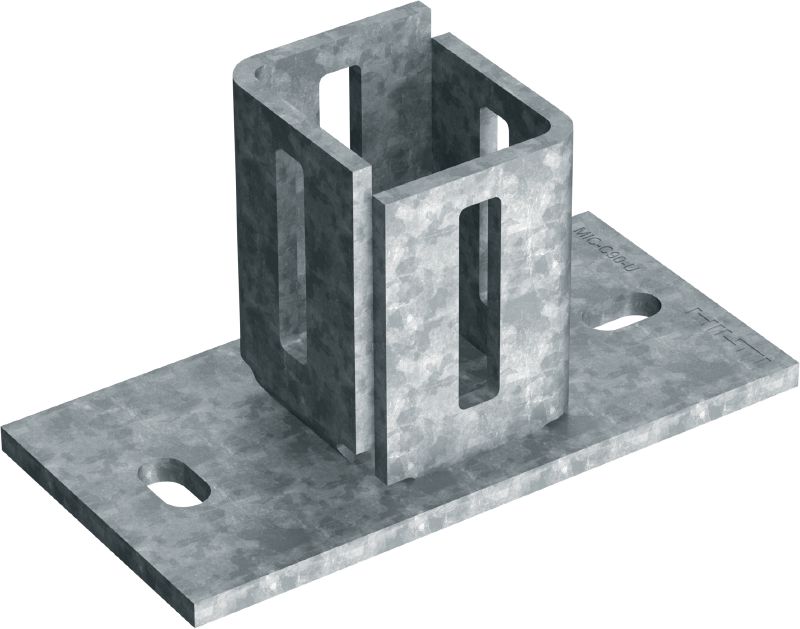

MIC-C-U Connector
New productItem #r6213
Connector (concrete) for installing MI girders between two walls
- Weight: 2.45 kg
- Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; bolt: 8.8 grade steel; nut: 8 grade steel
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Features & Applications
Features & Applications
Features
- Light-duty version for non-cantilever structures with support on both sides
- Elongated holes – to simplify exact positioning
- Suitable for use with mechanical or chemical anchors depending on loading and type of base material
- Designed for fast, one-person installation and extension
- No welding required – for faster, more efficient installation
Applications
- Installing MI girders between two walls
- Fastening to concrete walls, floors or ceilings
