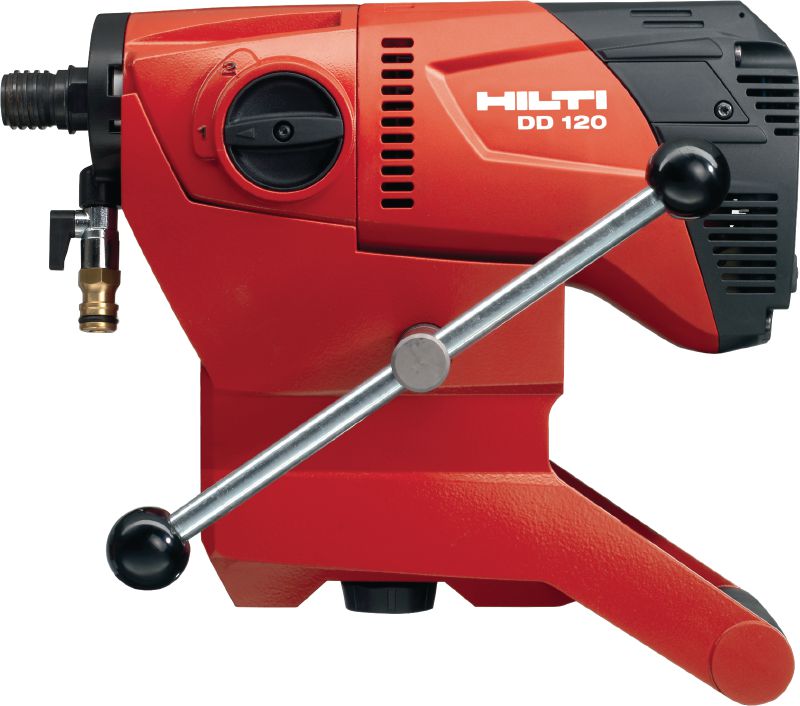

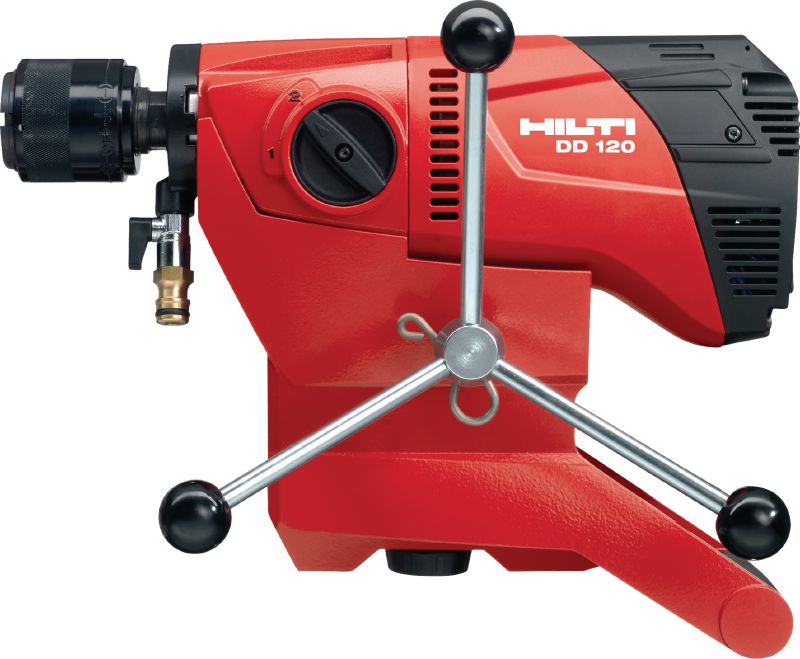

DD 120 Core drill







Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 - 6-3/8") in diameter
- Diameter range: 16 - 162 mm
- Base material: Concrete

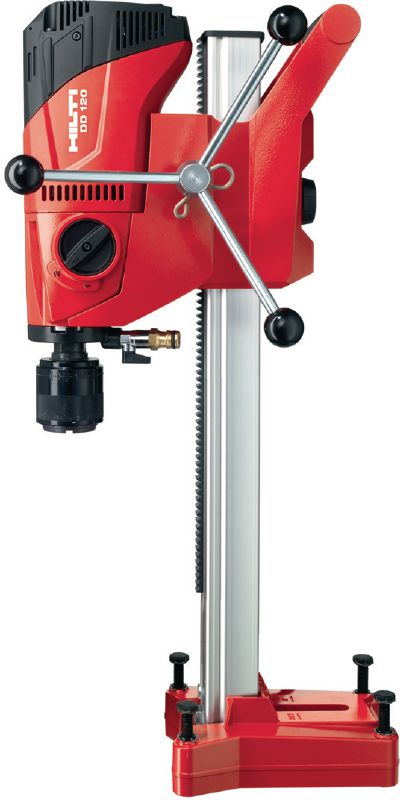

- Operation mode: Rig-based drilling system
Customers also searched for diamond coring, coring holes, coring tools, coring reinforced concrete or coring.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
From OMR 2,233.825
Technical Data
Diameter range
16 - 162 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.5 kg
Weight of complete system
11 kg
Dimensions (LxWxH)
327 x 147 x 330 mm
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
49 mm
- According to the applicable product standard (see Operating Instruction for more details)
Features & Applications
Features
- Exceptionally user-friendly thanks to intuitively designed features and controls
- Compact and lightweight concrete core drill – for much easier handling
- Two-speed gearing for optimum speed and torque
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
- Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)
Applications
- Installing pipes for sanitary, heating and air conditioning
- Installing water supply and waste water pipes
- Making openings for cable trays
- Setting large-diameter anchors and reinforcing bars
- Installing railings and barriers
For approval or certificate information, please see individual items.
